Dynova
Dynova

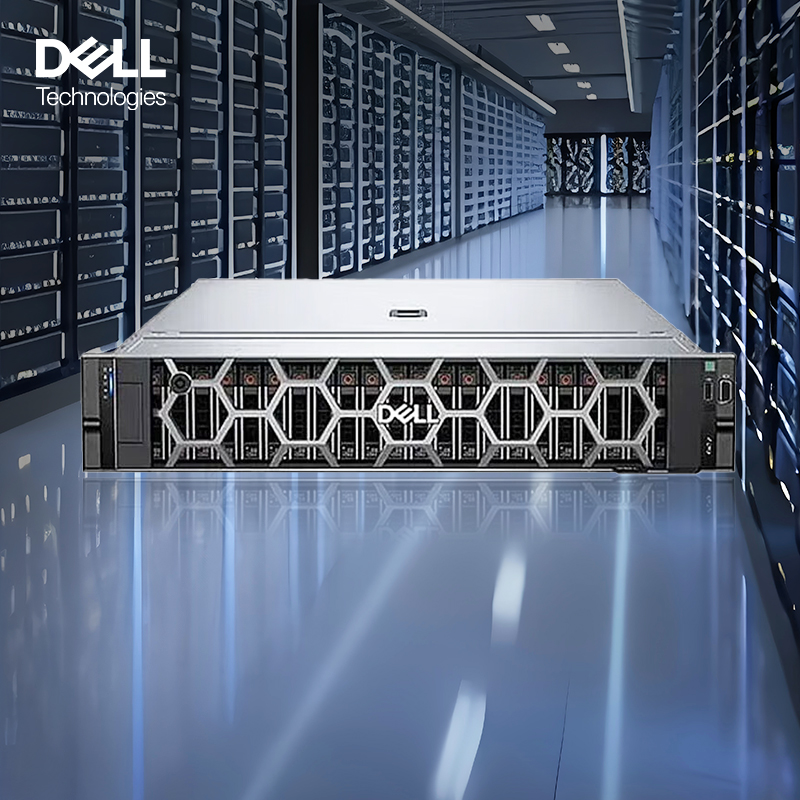

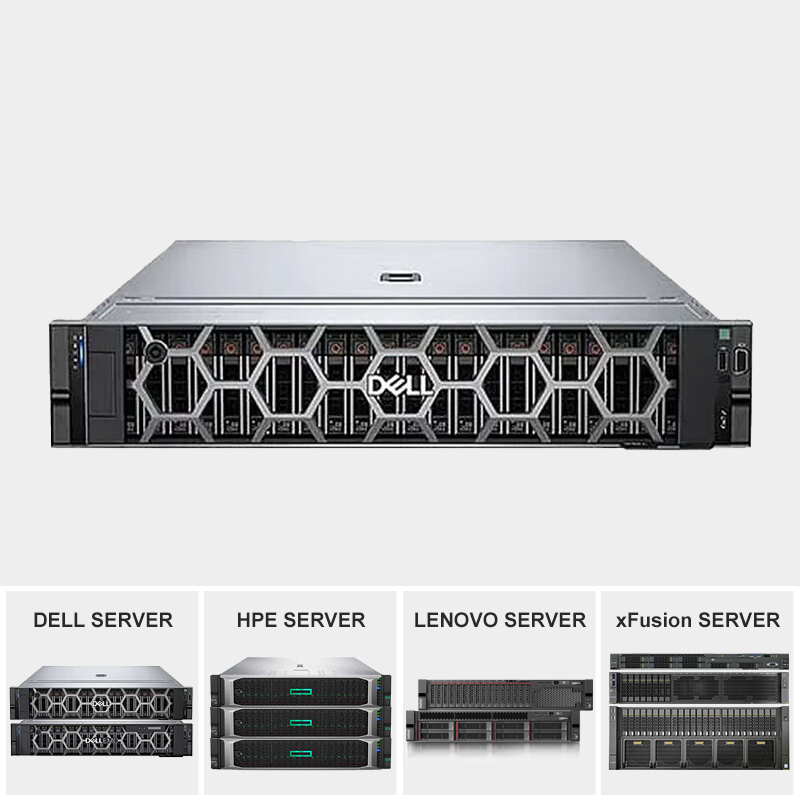

| Server Model | Dell EMC PowerEdge R760XD2 |
| Processor | Up to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and with optional Intel QuickAssist Technology |
| RAM | Up to 16 DDR5 RDIMMs (up to 1TB supported) NVDIMM No DIMM Speed: up to 4800 MT/S |
| Storage controllers |
• Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB • External HBA (non-RAID): HBA355e • Software RAID: S160 |
| Drive Bays |
Front bays: • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB |
| Power supplies | • 2800 W Titanium, 2400 W Platinum, 1800 W Titanium, 1400 W Platinum, 1100 W Titanium, 1100 W LVDC, 800 W Platinum, 700 W Titanium (Hot swap redundant) |
| Dimensions |
• Height: 86.8 mm (3.41 inches) • Width: 482 mm (18.97 inches) • Depth: 772.13 mm (30.39 inches) with bezel |
| Fans | Standard (STD) fans/High performance Silver (HPR) fans/ High performance Gold (VHP) fans; Up to 6 hot plug fans |
| Outline specification | 2U rack server |
| Embedded management | iDRAC9; iDRAC Direct; iDRAC RESTful API with Redfish; iDRAC Service Module; Quick Sync 2 wireless module |
| Embedded NIC | 2 x 1 GbE LOM |
| GPU options | Up to 2 x 350 W DW and 6 x 75 W SW |
| Ports |
Front: 1 x iDRAC Direct (Micro-AB USB), 1 x USB 2.0, 1 x VGA Rear: 1 x Dedicated iDRAC Ethernet, 1 x USB 2.0, 1 x USB 3.0, 1 x VGA |
| PCIe | Up to eight PCIe slots (Gen5 and Gen4 support) |
| Operating system | Canonical Ubuntu Server LTS; Microsoft Windows Server with Hyper-V; Red Hat Enterprise Linux; SUSE Linux Enterprise Server; VMware ESXi |
| Warranty | 3 years |
Meet your growing unstructured data needs with object storage technology designed to be easily configurable, serviceable, and scalable. This 2U, 2 socket server is ideal for file and object storage, video capture/retrieval, and content delivery networks.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
