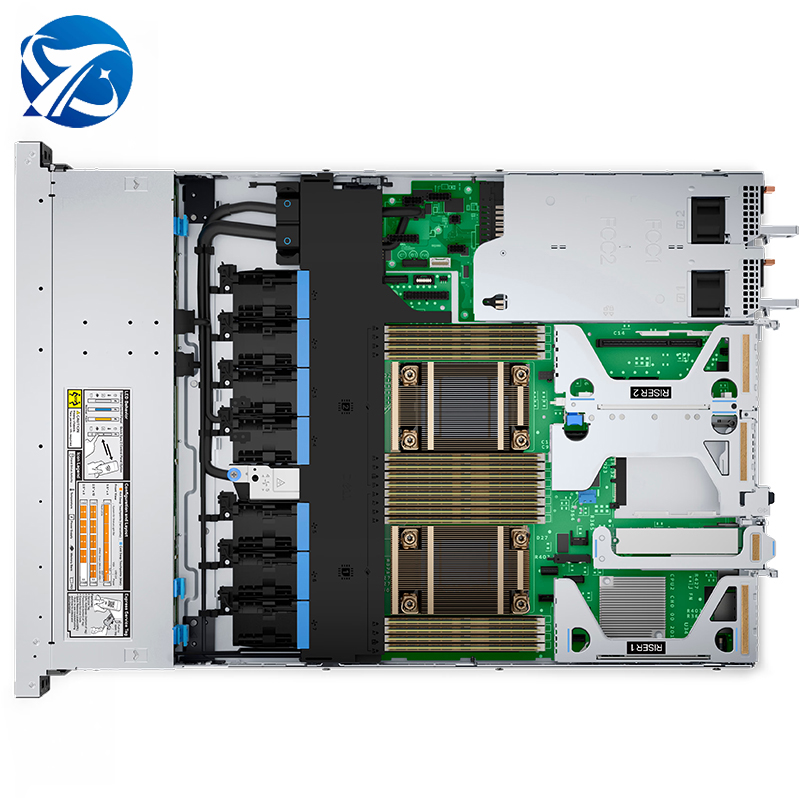

| Processor | Up to two 3rd generation Intel Xeon scalable processors with up to 24 cores each |
| Memory | 16 DDR4 DIMM slots support a maximum of 1 TB of RDIMMs and a rate of up to 2933 MT/s |
| Storage Controllers |
• Internal controller (RAID): PERC H345, PERC H355, HBA355i, PERC H745, PERC H755, S150 • Internal Boot: Internal dual SD module or Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2x M.2 SSD or USB • External PERC (RAID): PERC H840 • External HBA (non-RAID): HBA355e |

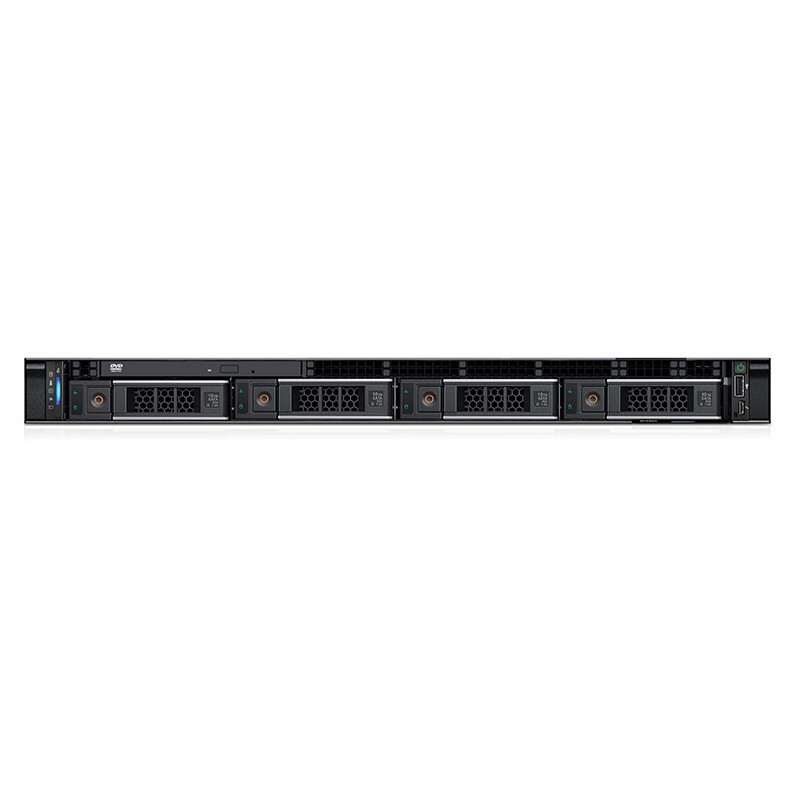

| Drive Bays |
Front tray: • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD), up to 64 TB • Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) up to 61.4 TB |
| Power Supplies |
• 1100 W DC / -48–(-60) V • 800 W Platinum AC 100-240 VAC or 240 VDC HVDC with hot swap redundancy • 600 W Platinum AC 100-240 VAC or 240 VDC HVDC, hot swap redundant |
| Cooling & Fans | Air cooling; Standard (STD) fans or high-performance SLVR fans; Up to seven cold swap fans |

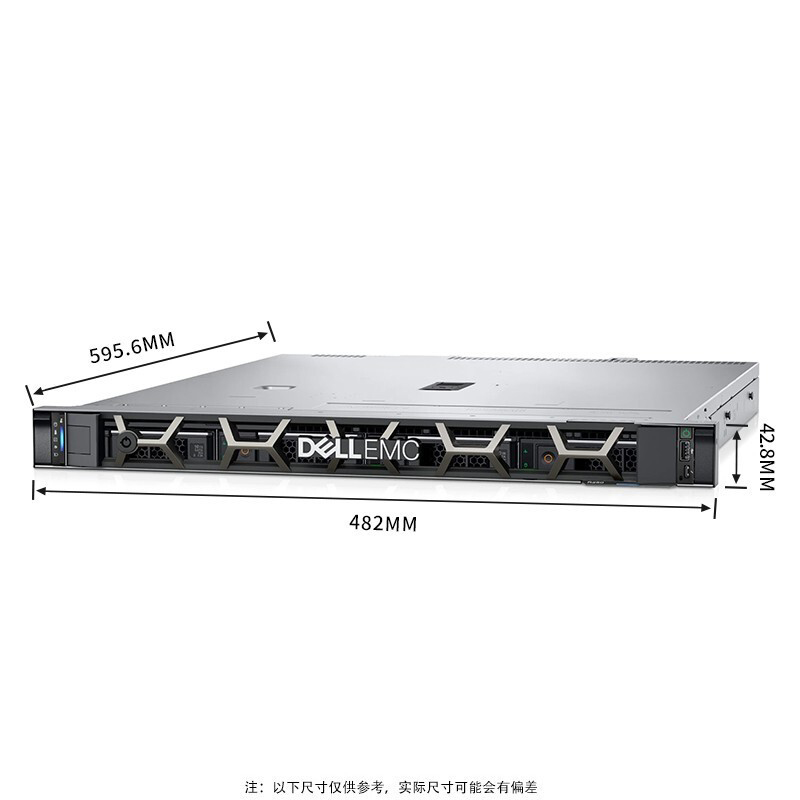

| Dimensions |
• Height – 42.8 mm (1.7 inches) • Width – 482 mm (18.97 inches) • Depth – 734.95 mm (28.92 inches) – without bezel |
| Form Factor | 1U rack server |
| Management | iDRAC9, iDRAC Service Module, iDRAC Direct, Quick Sync 2 wireless module, OpenManage Enterprise |
| Security |
• Cryptographically signed firmware • Secure Boot & Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 1.2/2.0 FIPS, CC-TCG certified |
| Ports |
Front: 1 x iDRAC Direct micro-USB, 1 x USB 3.0, 1 x VGA Rear: 1 x USB 2.0, 1 x Serial (optional), 1 x USB 3.0, 2 x RJ-45, 1 x VGA Internal: 1 x USB 3.0 |
| OS Support | Canonical Ubuntu Server LTS, Citrix Hypervisor, Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
