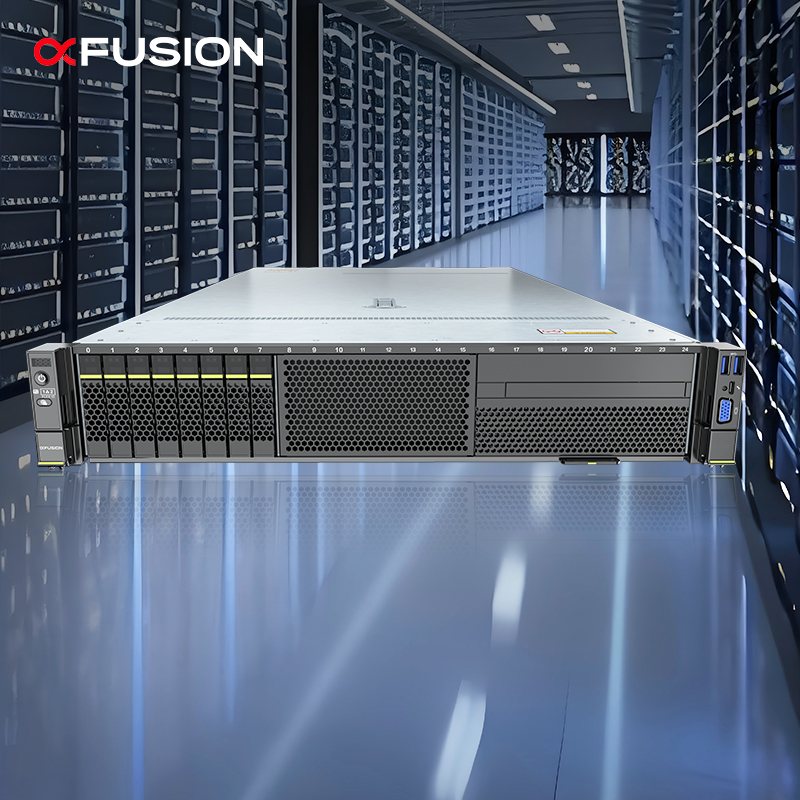

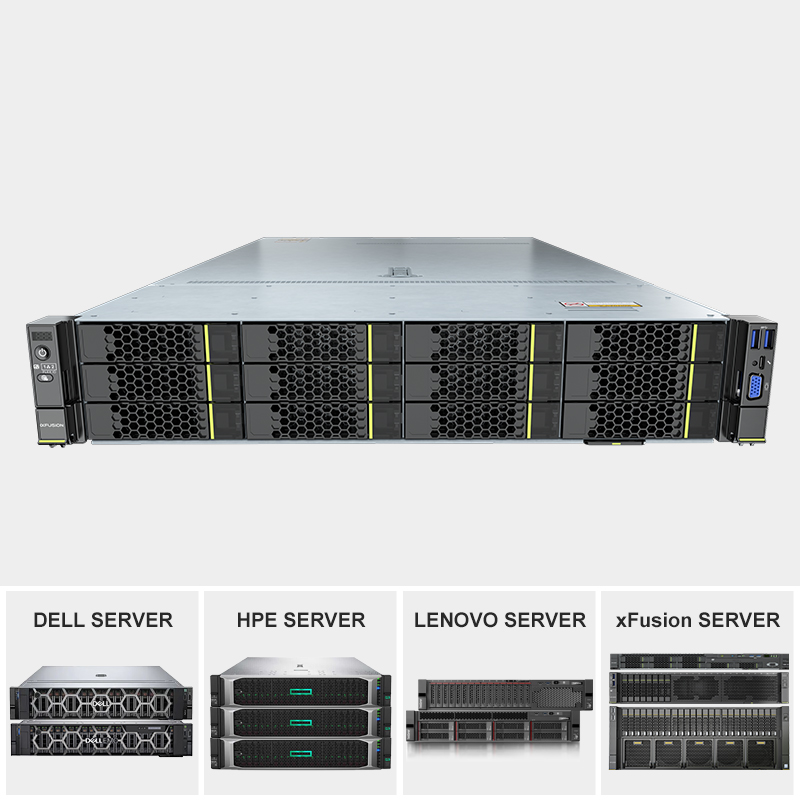

FusionServer 2288H V6 2U rack server: The FusionServer 2288H V6 is a 2U 2-socket rack server with flexible configurations, which can be widely used for cloud computing, virtualization, database, and big data workloads.

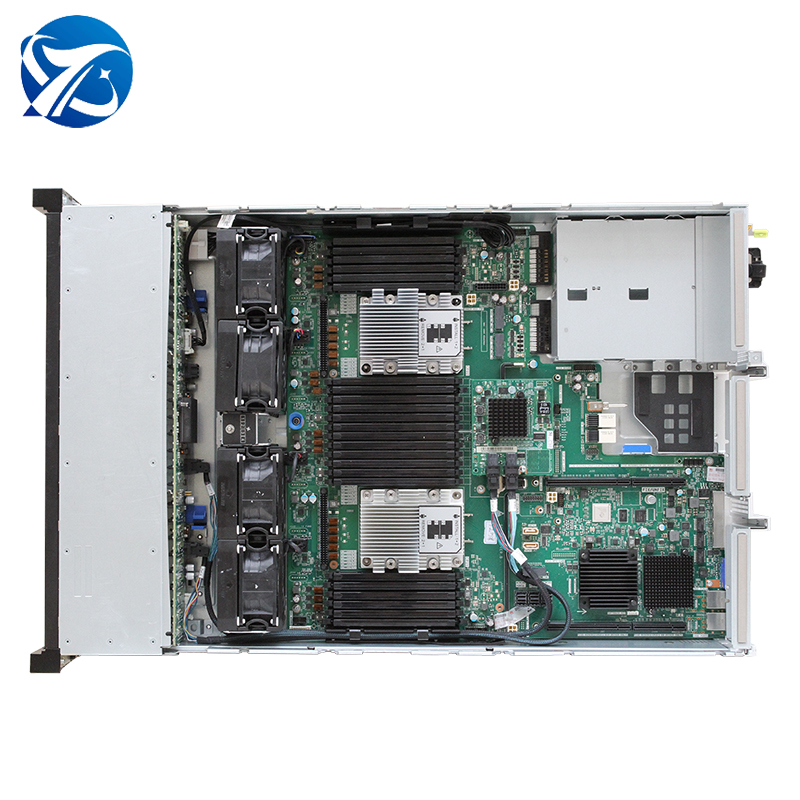

The 2288H V6 can be configured with 2-socket Intel® Xeon® Scalable processors, 32 DDR4 RAM, 14 PCIe expansion slots, and supports large local storage resources. It integrates patented technologies such as DEMT, intelligent power consumption management, FDM intelligent fault management, and optional FusionDirector full lifecycle management software, which can effectively reduce operations cost and improve return on investment.

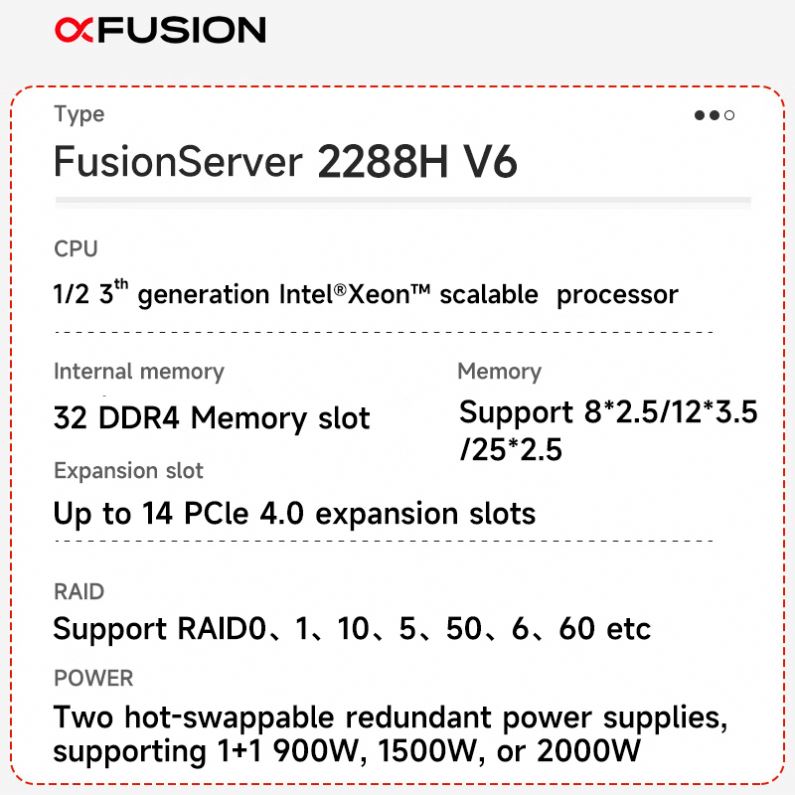

| Server Model | FusionServer 2288H V6 |
| Form Factor | 2U rack server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Local Storage | Supports various drive configurations: 8-31 x 2.5-inch SAS/SATA/SSD; 12-20 x 3.5-inch SAS/SATA; 4/8/16/24 NVMe SSDs; 45 x 2.5-inch drives or 34 full-NVMe SSDs; Dual M.2 SSDs. |

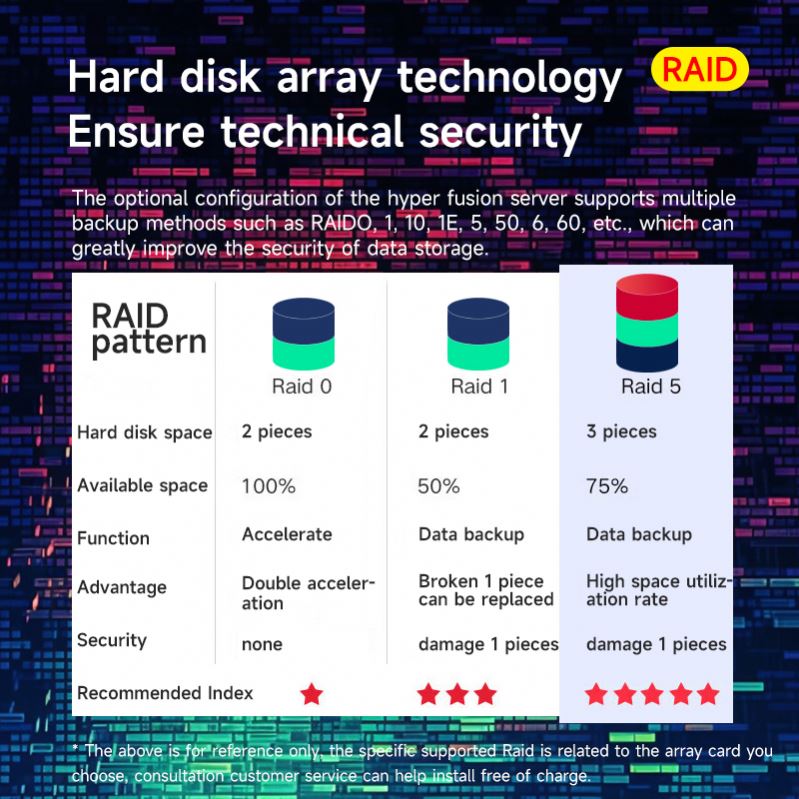

| RAID Support | RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor; RAID level migration, drive roaming, self-diagnosis. |
| Network | Multiple network types; OCP 3.0 NICs; Two FlexIO card slots support two OCP 3.0 network adapters; Hot swappable. |
| PCIe Expansion | Max 14 PCIe 4.0 slots (1 for RAID, 2 for OCP 3.0, 11 for standard cards). |
| Management | iBMC chip, GE management port, Redfish, SNMP, IPMI 2.0, HTML5/VNC KVM, FusionDirector software support. |
| Operating Systems | Windows Server, SUSE Linux Enterprise, VMware ESXi, Red Hat Enterprise, CentOS, Oracle, Ubuntu, Debian, etc. |
| Power Supply | Two hot-swappable PSUs (1+1 redundancy): 900W/1500W/2000W/3000W Platinum/Titanium; HVDC and DC options. |
| Dimensions | 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10 in.) |
As a leading integrated IT solutions provider, we combine cutting-edge manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end-to-end infrastructure services. With a team of over 300 highly skilled professionals, including more than 150 certified engineers, we bring 15 years of proven expertise in designing, deploying, and maintaining mission-critical IT environments.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
