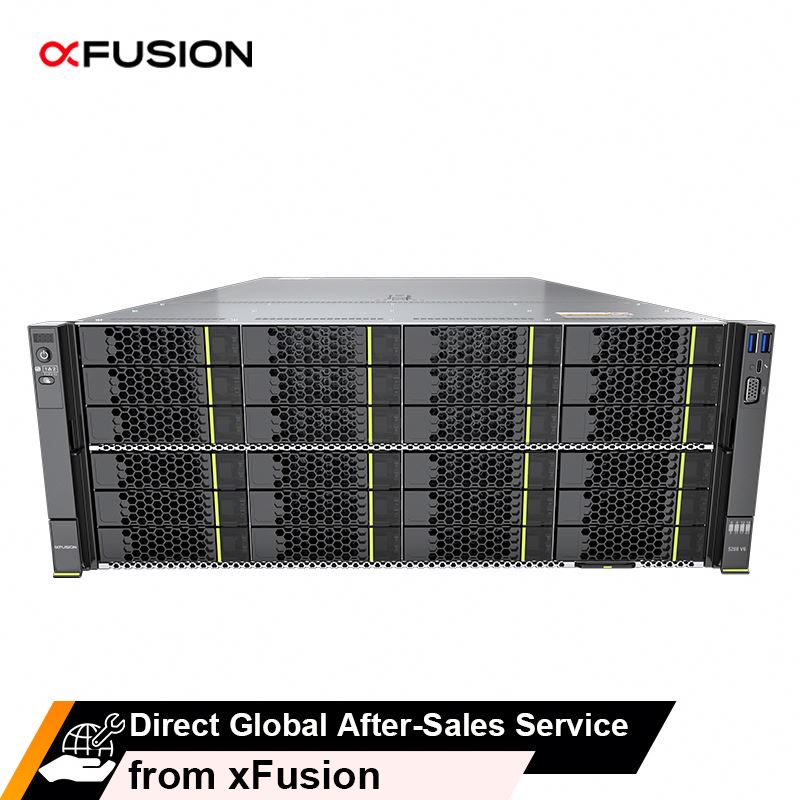

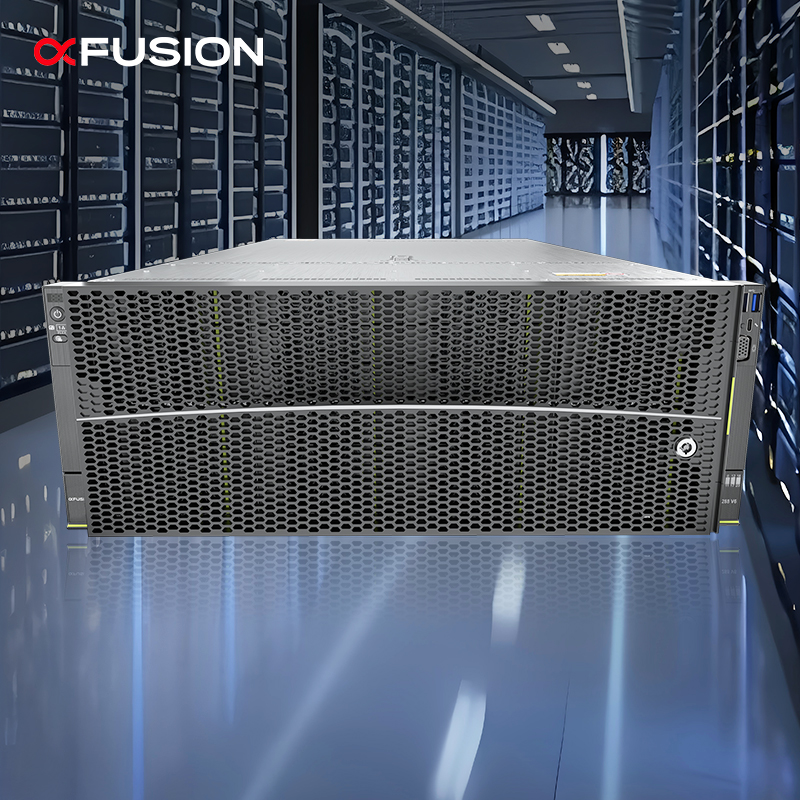

FusionServer 5288 V6 is a 4U 2-socket rack server that meets service requirements such as hot, warm, and cold data tiered deployment and historical data archiving. With its efficient design, FusionServer 5288 V6 ensures excellent computing performance and provides flexible and ultra-large local storage expansion capabilities, reducing data storage costs.
The 5288 V6 can be configured with two Intel Xeon scalable processors, 32 DDR4 DIMMs, and 44 3.5-inch + 4 NVMe SSDs in a 4U space. It integrates patented technologies such as DEMT intelligent power management and FDM intelligent fault management, effectively reducing OPEX and improving ROI.

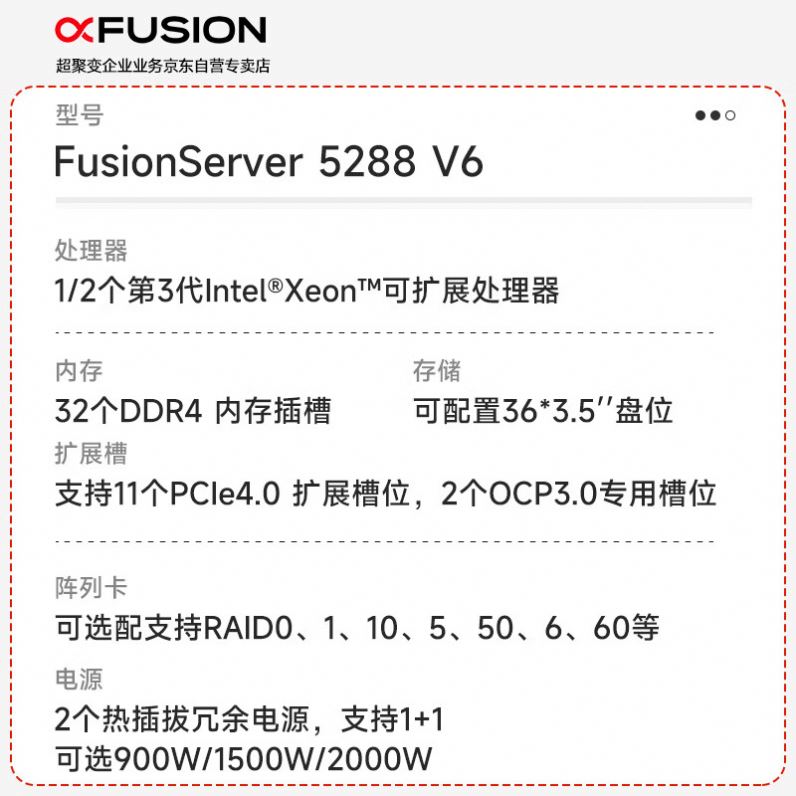

| Server Model | FusionServer 5288 V6 |
| Form Factor | 4U Rack Server |
| Processors | 1/2 3rd Generation Intel® Xeon® scalable processor (Ice Lake) (8300 / 6300 / 5300 / 4300 Series), up to 270W |
| Local Storage |
Various hard disk configurations supported (Hot swappable): • 36 to 44 3.5-inch SAS/SATA HDDs and 4 NVMe SSDs • 24 x 3.5-inch SAS/SATA front hard disks • 4 3.5-inch SAS/SATA internal hard disks • 16 3.5-inch SAS/SATA hard disks and four 2.5-inch SAS/SATA/NVMe rear hard disks • 12 3.5-inch SAS/SATA disks and eight 2.5-inch rear hard disks • Flash storage: Dual M.2 SSDs |

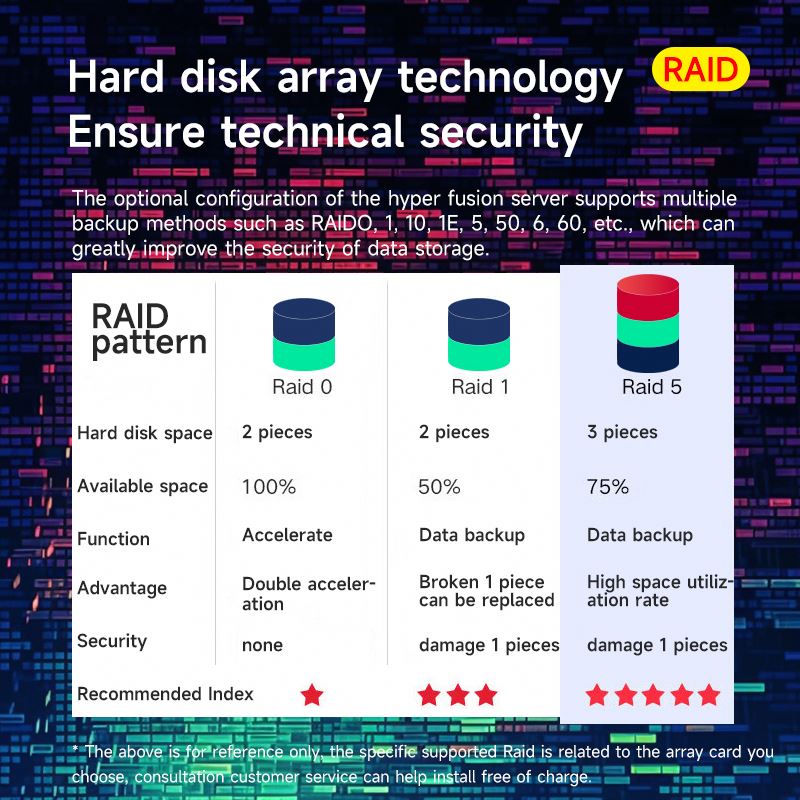

| RAID Support | Supports RAID 0, 1, 5, 50, 6, and 60, cache supercapacitor protection, RAID level migration, disk roaming, self-diagnosis, and web-based remote configuration. |
| Network | OCP 3.0 NIC; Two FLEX I/O card slots support two OCP 3.0 NICs, supports hot swap. |
| PCIe Expansion | Maximum of 11 PCIe 4.0 slots, including dedicated slots for RAID controller and FLEX I/O (OCP 3.0). |
| Chip Set | Intel® C621A |
| Fan Modules | Four hot-swappable fans, supporting N+1 redundancy. |
| Dimensions | 175 mm x 447 mm x 790 mm (Height x Width x Depth) |
| Power Supply |
2 redundant hot-swappable PSUs (1+1 redundancy): • 900W/1500W/2000W AC Platinum/Titanium options • Support for various input voltages (100-240V AC, 192-288V DC) |
