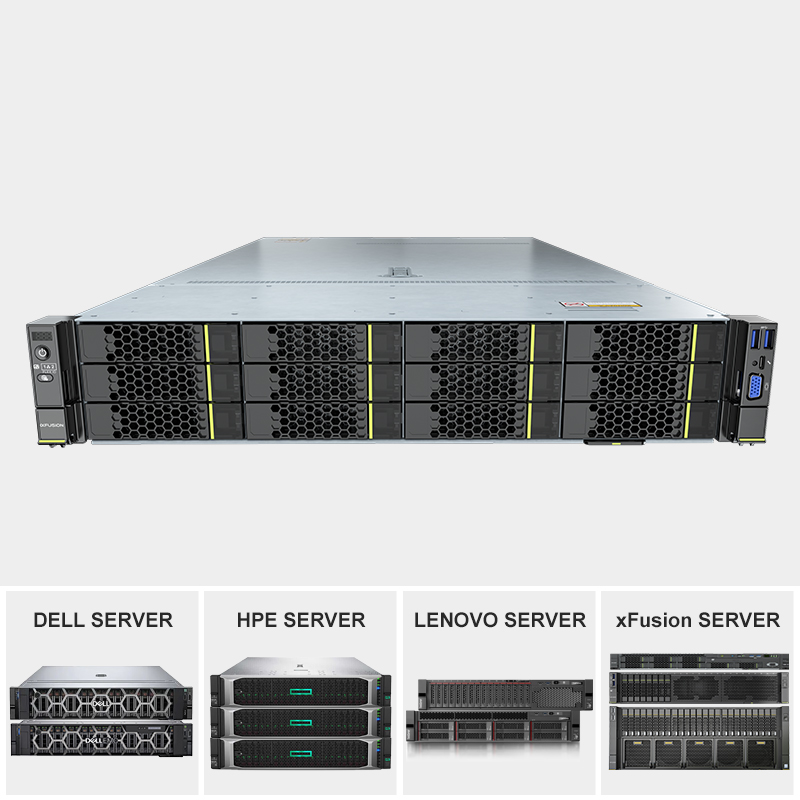

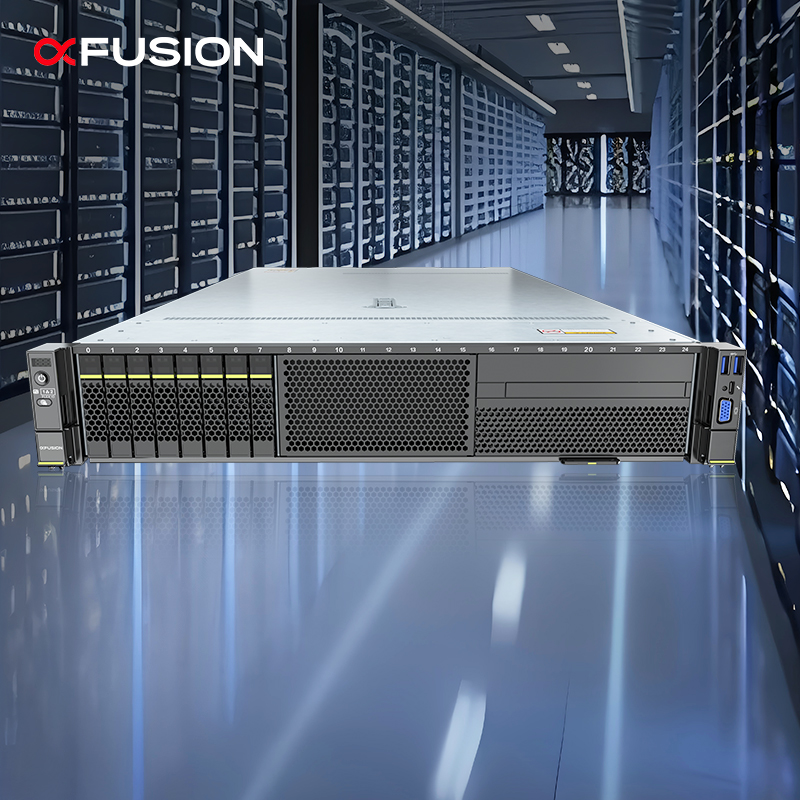

FusionServer 2288H V6 2U rack server

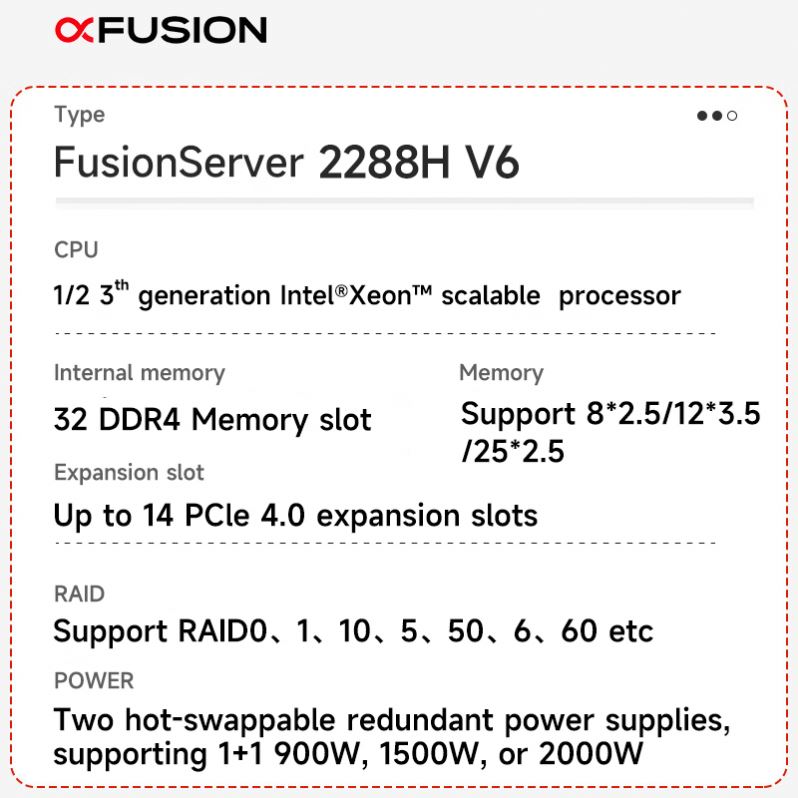

The FusionServer 2288H V6 is a 2U 2-socket rack server with flexible configurations, which can be widely used for cloud computing, virtualization, database, and big data workloads. The 2288H V6 can be configured with 2-socket Intel® Xeon® Scalable processors, 32 DDR4 RAM, 14 PCIe expansion slots, and supports large local storage resources.
| Server Model | FusionServer 2288H V6 |
| Form Factor | 2U rack server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Local Storage |
Supports various hot-swappable drive configurations: • 8-31 x 2.5-inch SAS/SATA/SSD drives • 12-20 x 3.5-inch SAS/SATA drives • 4/8/16/24 NVMe SSDs • 45 x 2.5-inch drives or 34 full-NVMe SSDs • Dual M.2 SSDs (Flash storage) |

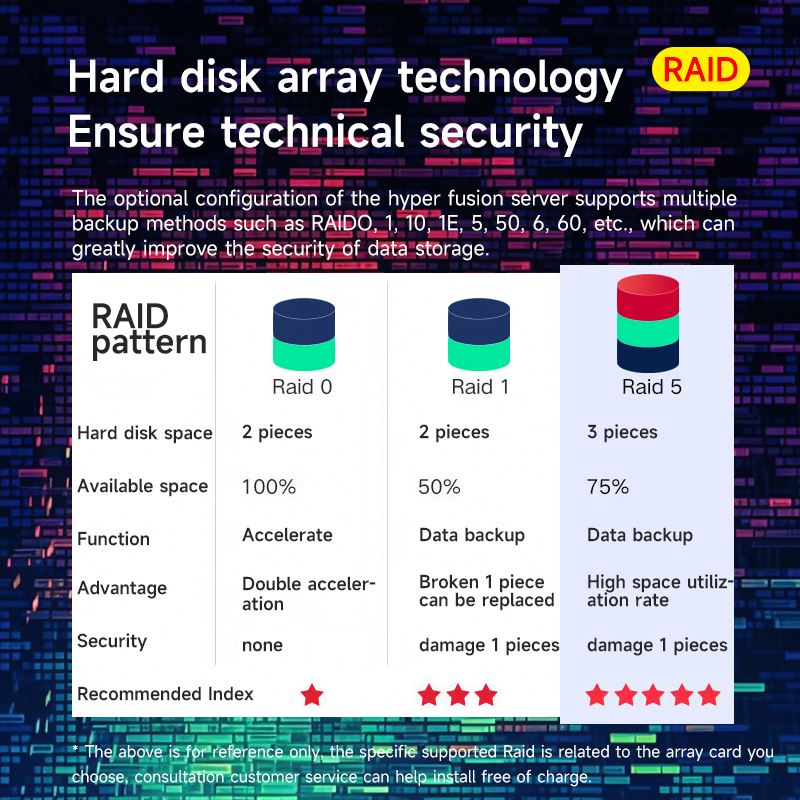

| RAID Support | RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache protection; RAID roaming and self-diagnosis. |
| Network | Multiple network expansion; OCP 3.0 NICs; Two FlexIO card slots supporting two network adapters; Hot-swappable. |
| PCIe Expansion | Max 14 PCIe 4.0 slots (1 dedicated for RAID, 2 for OCP 3.0, 11 for standard cards). |
| Management | iBMC chip with dedicated GE port; Supports Redfish, SNMP, IPMI 2.0; HTML5/VNC KVM remote management; Optional FusionDirector software. |
| Operating Systems | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, etc. |
| Security | Power-on password, TPM 2.0, security panel, secure boot, and cover opening detection. |
| Dimensions | 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10 in.) |
