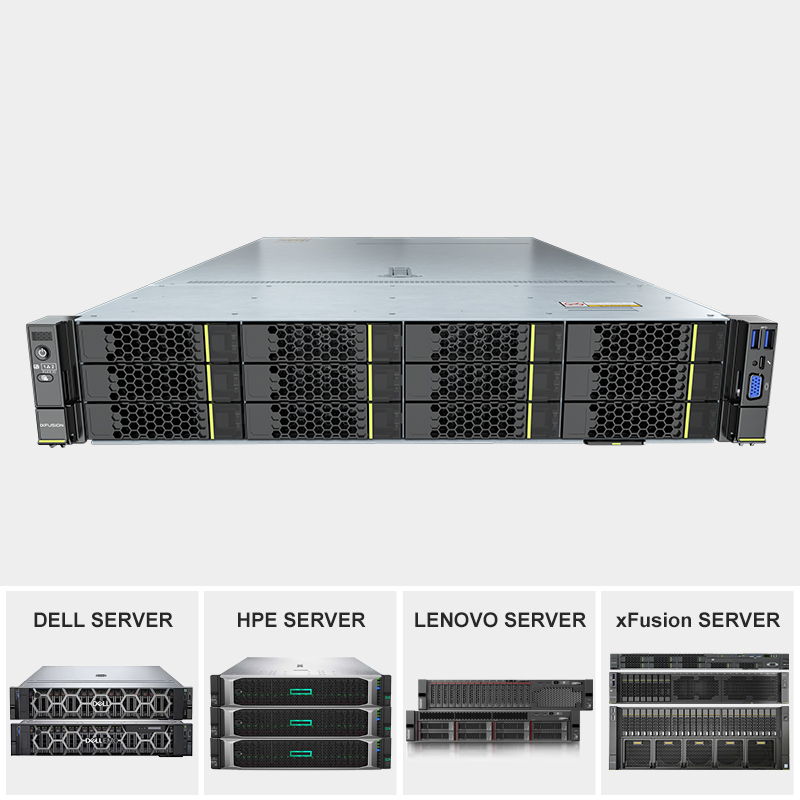

FusionServer 2288H V6 is a 2U 2-socket rack server with flexible configurations, widely utilized for cloud computing, virtualization, database, and big data workloads. It can be configured with 2-socket Intel® Xeon® Scalable processors, 32 DDR4 RAM, and 14 PCIe expansion slots, supporting expansive local storage resources.
It integrates patented technologies such as DEMT (intelligent power consumption management), FDM (intelligent fault management), and optional FusionDirector full lifecycle management software, effectively reducing operations costs and improving ROI.

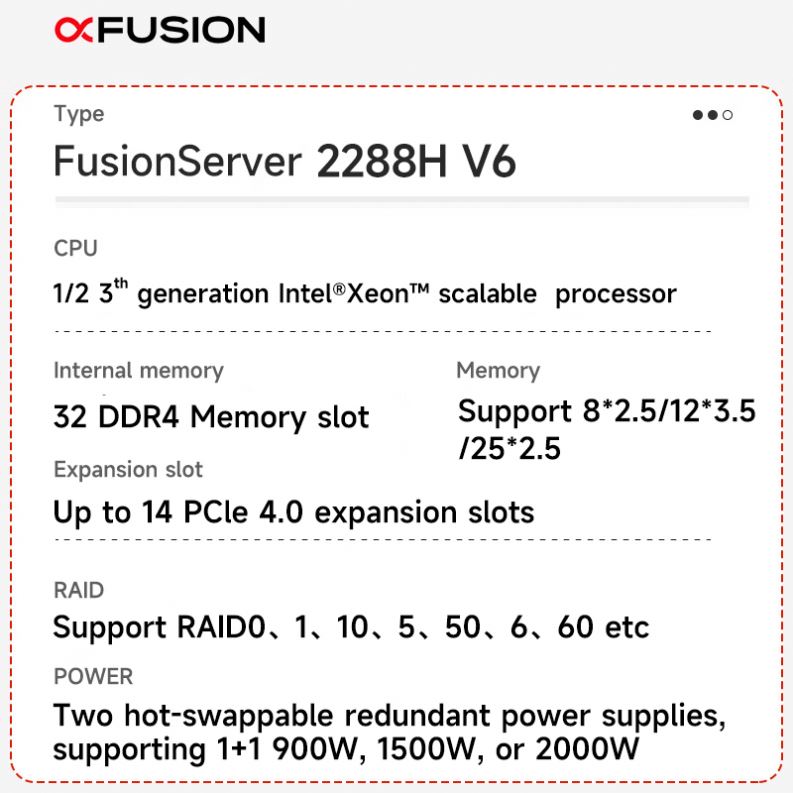

| Server Model | FusionServer 2288H V6 |
| Form Factor | 2U rack server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Local Storage |
Supports various hot-swappable configurations: • 8-31 x 2.5-inch SAS/SATA/SSD drives • 12-20 x 3.5-inch SAS/SATA drives • 4/8/16/24 NVMe SSDs • Dual M.2 SSDs for flash storage |

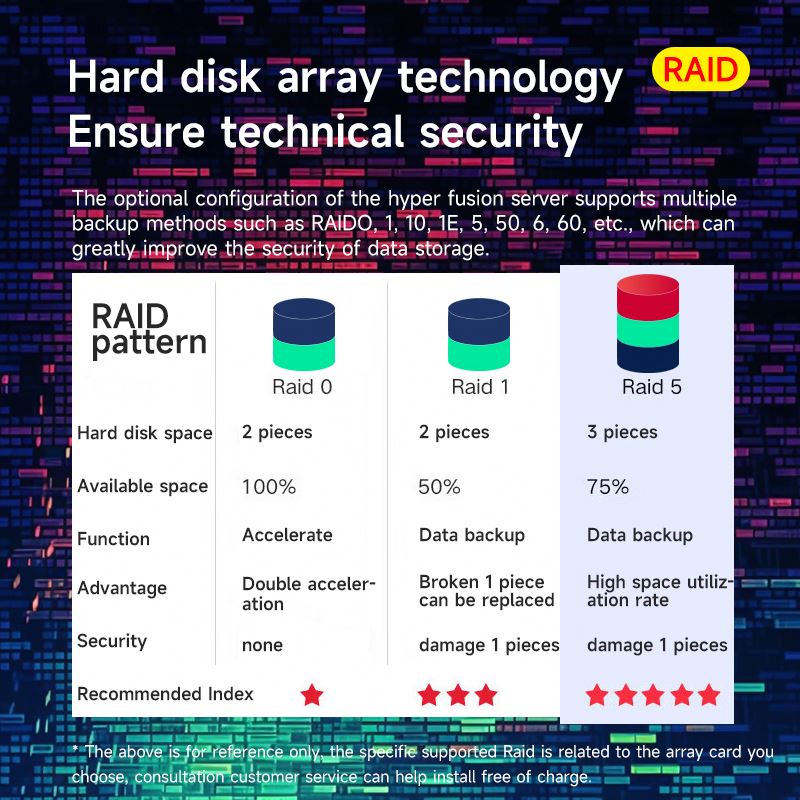

| RAID Support | RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data protection; RAID migration and self-diagnosis. |
| Network | Expansion capability for multiple network types; OCP 3.0 NICs supported via two FlexIO slots; Hot-swappable. |
| PCIe Expansion | Maximum of 14 PCIe 4.0 slots, including dedicated RAID card and OCP 3.0 slots. |
| Management | iBMC chip with dedicated GE port; supports Redfish, SNMP, IPMI 2.0, HTML5/VNC KVM; Optional FusionDirector software for intelligent lifecycle management. |
| Operating Systems | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, etc. |
| Security | Power-on password, administrator password, TPM 2.0, security panel, secure boot, cover opening detection. |
| Dimensions | 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10 in.) |
| Power Supply | Dual hot-swappable PSUs (1+1 redundancy): 900W, 1200W, 1500W, 2000W, 3000W Platinum/Titanium options (AC/DC/HVDC). |
