FusionServer 2288H V6 2U rack server. The FusionServer 2288H V6 is a 2U 2-socket rack server with flexible configurations, which can be widely used for cloud computing, virtualization, database, and big data workloads. The 2288H V6 can be configured with 2-socket Intel® Xeon® Scalable processors, 32 DDR4 RAM, 14 PCIe expansion slots, and supports large local storage resources.
It integrates patented technologies such as DEMT, intelligent power consumption management, FDM intelligent fault management, and optional FusionDirector full lifecycle management software, which can effectively reduce operations cost, improve return on investment.
| Server Model | FusionServer 2288H V6 |
| Form Factor | 2U rack server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Local Storage |
Supports various drive configurations and hot swappable: • 8-31 x 2.5-inch SAS/SATA/SSD drives • 12-20 x 3.5-inch SAS/SATA drives • 4/8/16/24 NVMe SSDs • 45 x 2.5-inch drives or 34 full-NVMe SSDs Supports flash storage: Dual M.2 SSDs |
| RAID Support | Supports RAID 0, 1, 10, 1E, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration. |
| Network | Provides expansion capability of multiple types of networks. Provides OCP 3.0 NICs. The two FlexIO card slots support two OCP 3.0 network adapter respectively. Hot swappable function supported. |

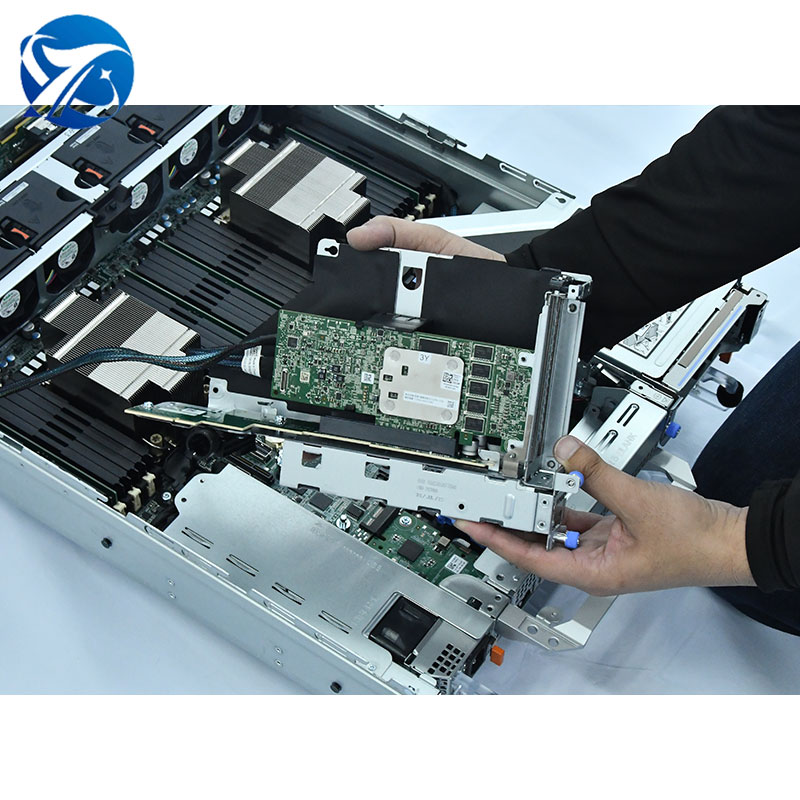

| PCIe Expansion | Provides a maximum of fourteen PCIe 4.0 slots, including one PCIe slot dedicated for RAID card, two FlexIO card slots dedicated for OCP 3.0, and eleven PCIe 4.0 slots for standard PCIe cards. |
| Chip Set | Intel C621A |
| Management |
The iBMC chip integrates one dedicated GE management port for fault diagnosis, automated O&M, and hardware security. • Supports Redfish, SNMP, and IPMI 2.0; remote UI based on HTML5/VNC KVM. • (Optional) FusionDirector software for advanced intelligent management throughout the lifecycle. |
| Operating Systems | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, etc. |
| Height x Width x Depth | 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10 in.) |
| Power Supply Units |
Two hot-swappable PSUs in 1+1 redundancy mode: • 900 W AC Platinum/Titanium PSUs • 1500 W AC Platinum PSUs • 1500 W 380 V HVDC PSUs • 1200 W -48 V to -60 V DC PSUs • 2000 W / 3000 W AC Platinum/Titanium options |
